Curtain wall aluminum honeycomb panels are primarily used for building exterior decoration. They utilize high-quality imported raw materials and are precisely dimensioned. The surface is pre-coated with an advanced fluorocarbon paint process, ensuring a 30-year colorfastness. Our company utilizes a two-component polymer epoxy film and a two-component modified epoxy resin, laminated under pressure and high temperature in a closed, dust-free process using fully automated honeycomb panel lamination equipment. This results in stronger bonding, improved bending resistance, flatter panels, and reliable quality. We can manufacture various custom-shaped honeycomb panels, including rigid panels, folded panels, and trapezoidal panels, to suit architectural design requirements. All non-planar shapes, such as arcs, L-shaped panels, and U-shaped panels, are formed in a single mold. Only the same batch of roll-coated aluminum coils is used for each project, ensuring zero color variation. This is a high-quality, lightweight, high-strength, and luxuriously designed green and environmentally friendly decorative material.
Features:
◆ Complies with the definition of a green building material and is known as the "21st Century Aluminum Curtain Wall Building Material."
◆ Exceptional sound insulation, heat insulation, fire resistance, and earthquake resistance. ◆ Stable structure and excellent wind resistance.
◆ Excellent panel surface flatness.
◆ Easy and flexible installation and maintenance, reducing construction and maintenance costs.
◆ Customizable honeycomb panels in various colors and shapes, as well as special stone materials, are also available.

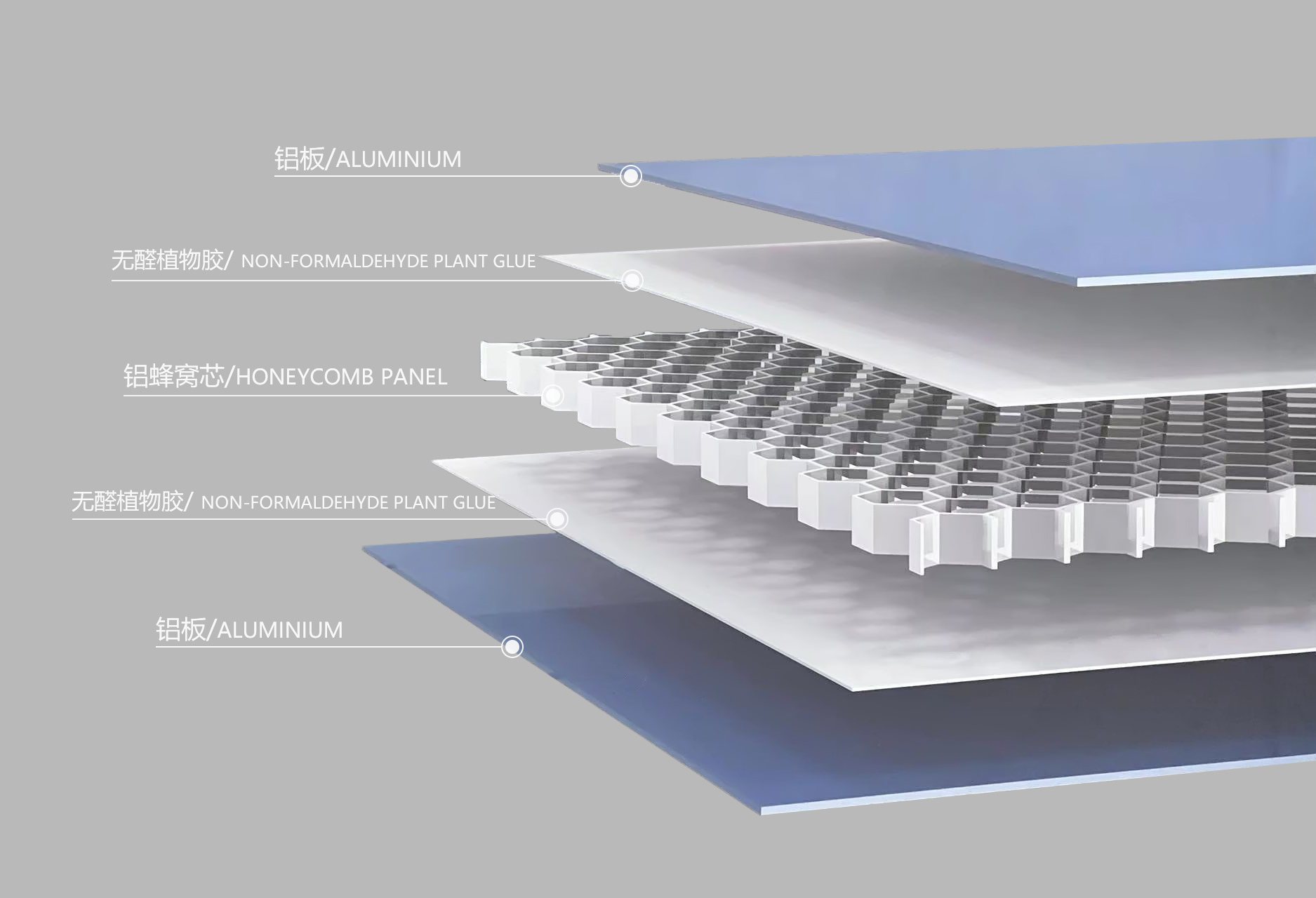

Structure:
Aluminum honeycomb panels utilize high-strength 3003 aluminum alloy panels and a high-density aluminum honeycomb core. Standard panel thicknesses are 0.8mm and 1.0mm, with overall panel thicknesses of 10mm, 15mm, and 25mm. Other specifications and sizes can be designed and manufactured upon request to meet diverse application needs.
Material:
Aluminum panels: Primarily made of high-quality 3003H24 aluminum alloy or 5052AH14 high-manganese alloy, with a carbon roller-coated plate thickness of 0.8-1.5mm. Aluminum Base Plate: Base plate thickness is 0.5-1.0mm.
Aluminum Honeycomb: The core material uses a hexagonal 3003H24 aluminum honeycomb core with an aluminum thickness of 0.04-0.07mm and a side length of 5-6mm.
Adhesive: Two-component epoxy film and two-component modified epoxy resin are used.
